NewAplique IN-V
Need technical support or a quote for your project?

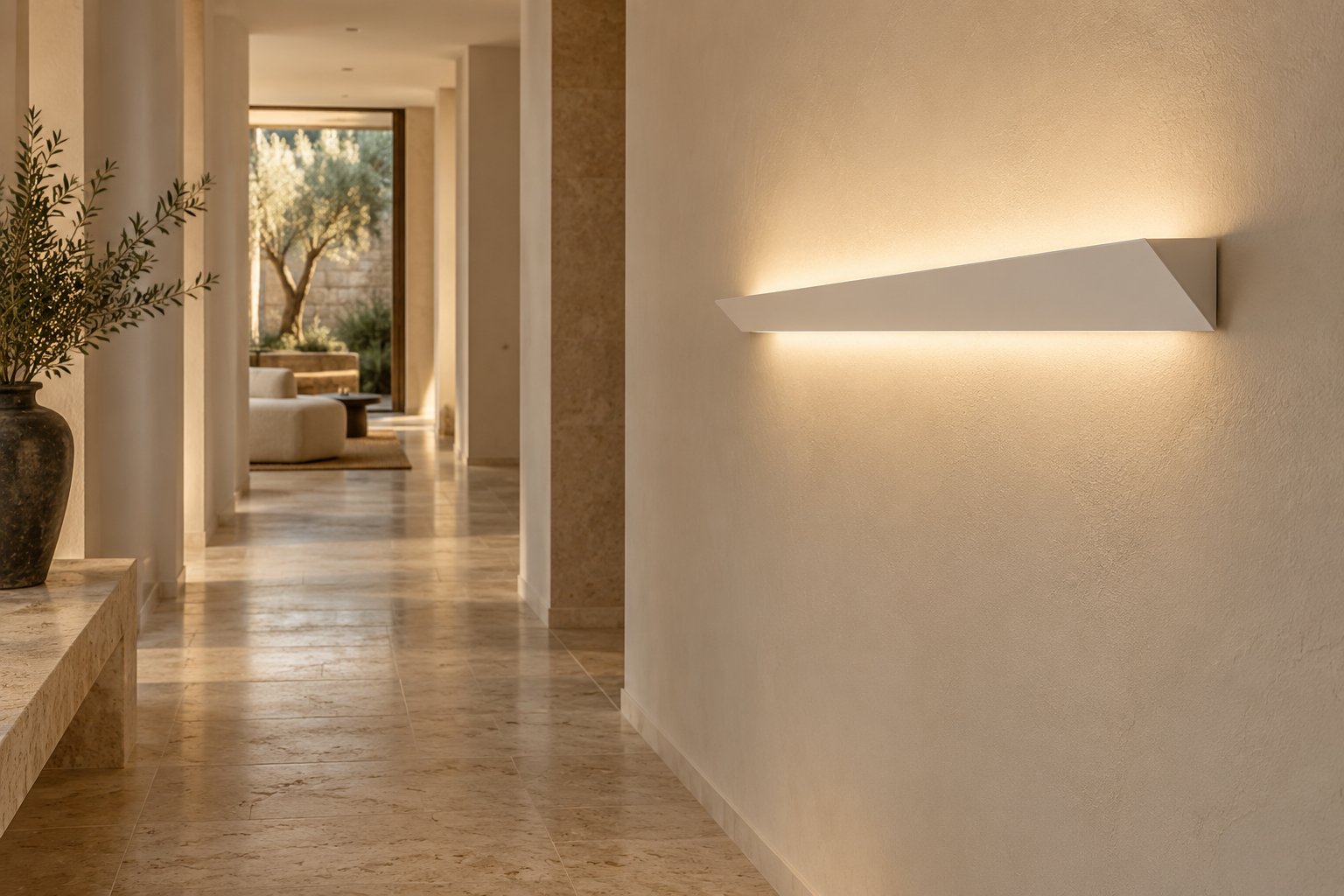

IN-V SALIENTE traces a precise line of light across the wall. Its angular steel form gives the interior a distinct architectural presence, while the opal acrylic diffuser softens the luminous effect. A surface-mounted composition for projects that value visual continuity and the character of materials.

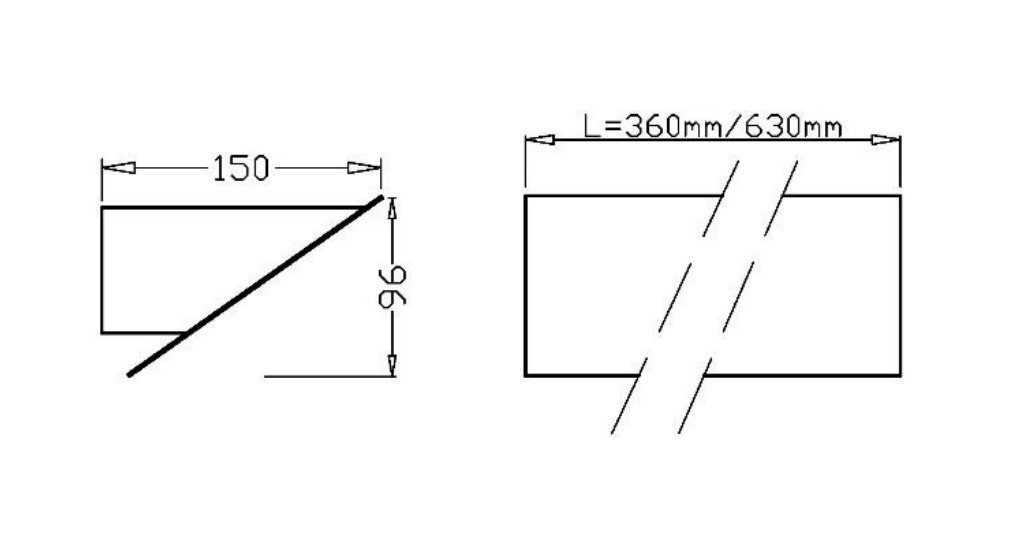

Offered in white or black and in 360 or 630 mm lengths, its compact body houses the power supply. Versions in 2700 K, 3000 K, 4000 K and tunable white allow the atmosphere to be tailored to the project. Other finishes on request.
Datasheet details
OSRAM LED source; IP20; CRI >80; 220–240 V, 50/60 Hz supply; class I; On/Off, DALI or Wireless control, according to configuration. Power and luminous flux vary by version.
Power | Luminous flux | Size |
|---|---|---|
6.5 W | 1100 lm | 360 × 165 mm |
13 W | 2200 lm | 360 × 165 mm |
19.5 W | 3300 lm | 360 × 165 mm |
13 W | 2200 lm | 630 × 165 mm |
26 W | 4400 lm | 630 × 165 mm |
39 W | 6600 lm | 630 × 165 mm |
References and variants
Reference | Finish | Colour temperature | Dimensions |
|---|---|---|---|
IN-V.B.27.36 | White | 2700 K | 360 × 165 mm |
IN-V.B.30.36 | White | 3000 K | 360 × 165 mm |
IN-V.B.40.36 | White | 4000 K | 360 × 165 mm |
IN-V.B.TW.36 | White | tunable white | 360 × 165 mm |
IN-V.P.27.36 | Black | 2700 K | 360 × 165 mm |
IN-V.P.30.36 | Black | 3000 K | 360 × 165 mm |
IN-V.P.40.36 | Black | 4000 K | 360 × 165 mm |
IN-V.P.TW.36 | Black | tunable white | 360 × 165 mm |
IN-V.B.27.63 | White | 2700 K | 630 × 165 mm |
IN-V.B.30.63 | White | 3000 K | 630 × 165 mm |
IN-V.B.40.63 | White | 4000 K | 630 × 165 mm |
IN-V.B.TW.63 | White | tunable white | 630 × 165 mm |
IN-V.P.27.63 | Black | 2700 K | 630 × 165 mm |
IN-V.P.30.63 | Black | 3000 K | 630 × 165 mm |
IN-V.P.40.63 | Black | 4000 K | 630 × 165 mm |
IN-V.P.TW.63 | Black | tunable white | 630 × 165 mm |
